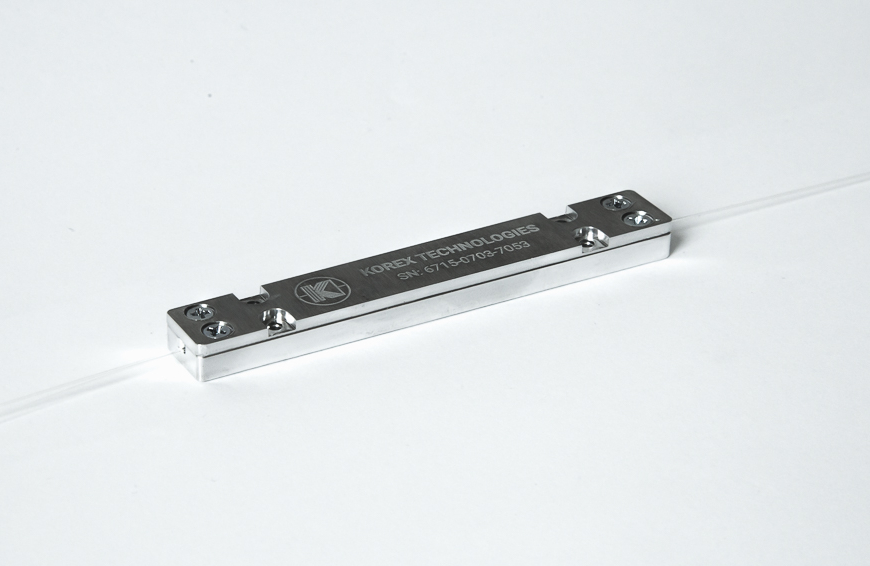

This multi-mode signal-pump combiner is designed for high power fiber laser applications. We offer multiple versions that combine 1,6 or 18 pump lasers and one PM signal channel into one double cladding PM output fiber. The pump fiber and the output fiber type can be customized.
| Signal fiber | Pump fiber | Output fiber | Configuration | Low signal | Laser | Pump eff. | Max. power per leg |
Wavelength |
|---|---|---|---|---|---|---|---|---|
| SMF28+ | 105/125 0.22NA | DC 25/250 | 1+6x1 | < 1.0 dB | < 0.5 | 93% | 50 | 2000 nm |
| DC 10/130 | 105/125 0.22NA | DC 25/250 | 1+6x1 | < 1.0 dB | < 0.5 | 93% | 50 | 2000 nm |
| SMF28+ | 200/220 0.22NA | DC 25/400 | 1+6x1 | < 1.0 dB | < 0.5 | 93% | 200 | 2000 nm |
| DC 10/130 | 200/220 0.22NA | DC 25/400 | 1+6x1 | < 1.0 dB | < 0.5 | 93% | 200 | 2000 nm |
| DC 25/250 | 105/125 0.22NA | DC 25/400 | 1+6x1 | < 1.0 dB | < 0.5 | 93% | 50 | 2000 nm |
| DC 25/250 | 200/220 0.22NA | DC 25/400 | 1+6x1 | < 1.0 dB | < 0.5 | 93% | 200 | 2000 nm |
High power Signal-pump combiner can be used to combine the power from several multimode lasers with a signal feed into one double clad fiber (DCF). Our signal-pump combiners feature exceptional optical performance and characteristics. Combiners are designed for a wide range of high power applications. They provide a maximum conservation of brightness for applications like direct diode materials processing and pump cascading fiber laser designs. Our signal-pump combiners can meet a wide range of power handling configurations with various number of input/output fibers and different fiber types.
We can produce customized solutions to meet your requirements. For more details about the product, price or purchase options, please send us a message.
