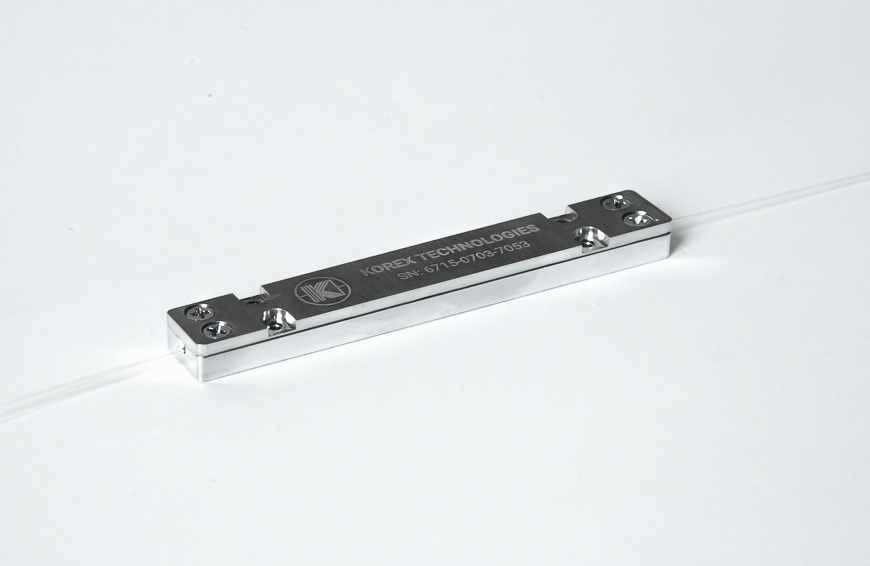

This multi-mode pump combiner is designed for high power fiber laser applications. We offer multiple versions that combine 2,3,4,7,19 or 37 lasers into one multi-mode output fiber. The pump fiber and the output fiber type can be customized.
| Output fiber | Pump fiber | Configuration | Pump eff. | Max power per leg |
|---|---|---|---|---|
| DC x/400 | 200/220 0.22NA | 1x2 | > 95 % | 400 |
| DC x/400 | 200/220 0.22NA | 1x3 | > 95 % | 400 |
| DC x/400 | 200/220 0.22NA | 1x4 | > 95 % | 200 |
| DC x/400 | 200/220 0.22NA | 1x7 | > 94 % | 200 |
| DC x/400 | 105/125 0.22NA | 1x19 | > 97 % | 50 |
| DC x/400 | 105/125 0.22NA | 1x37 | > 94 % | 50 |
| DC x/250 | 200/220 0.22NA | 1x2 | > 95 % | 400 |
| DC x/250 | 200/220 0.22NA | 1x3 | > 95 % | 200 |
| DC x/250 | 200/220 0.22NA | 1x7 | > 93 % | 200 |
| DC x/250 | 105/125 0.22NA | 1x7 | > 97 % | 50 |
| DC x/250 | 105/125 0.22NA | 1x19 | > 95 % | 50 |
| DC x/130 | 105/125 0.22NA | 1x2 | > 95 % | 50 |
| DC x/130 | 105/125 0.22NA | 1x4 | > 93 % | 50 |
| DC x/130 | 105/125 0.22NA | 1x7 | > 93 % | 50 |
Pump combiner combines up to 61 multimode lasers power to create a high power output into a single clad or double clad fiber (DCF). Our combiners feature exceptional optical performance and characteristics. Combiners are designed for a wide range of high power applications. They provide a maximum conservation of brightness for applications like direct diode materials processing and pump cascading fiber laser designs. Our pump combiners can meet a wide range of power handling configurations with various number of input/output fibers and different fiber types.
We can produce customized solutions to meet your requirements. For more details about the product, price or purchase options, please send us a message.
