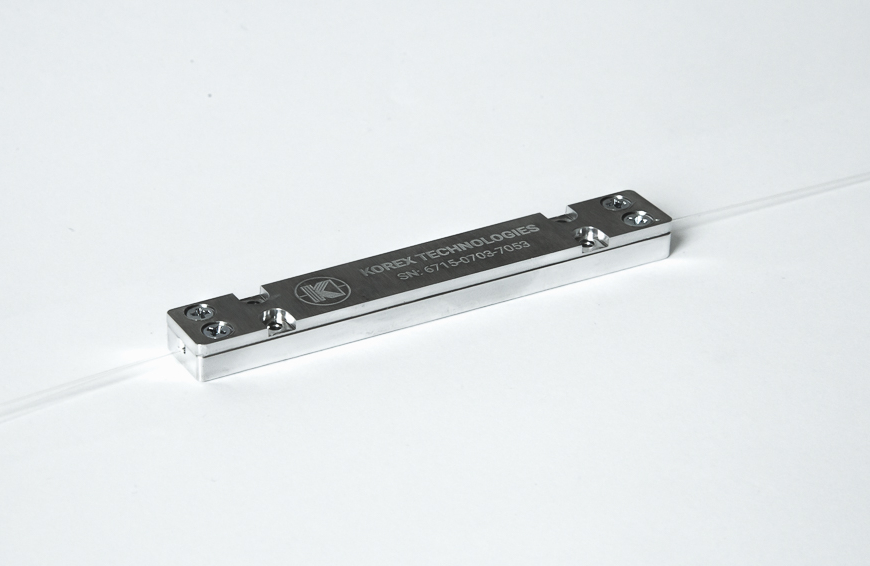

Mode field adapters is an essential device to modify a fiber’s optical properties to match the fiber that it is being spliced with a low signal loss and a minimal degradation of the beam quality.
| Input fiber | Output fiber | Insertion Loss | Wavelength |
|---|---|---|---|
| SMF28+ | DC 10/130 | < 0.7 dB | 2000 nm |
| SMF28+ | DC 25/250 | < 0.7 dB | 2000 nm |
| SMF28+ | DC 25/400 | < 0.7 dB | 2000 nm |
| SM2000 | DC 10/130 | < 0.7 dB | 2000 nm |
| SM2000 | DC 25/250 | < 0.7 dB | 2000 nm |
| SM2000 | DC 25/400 | < 0.7 dB | 2000 nm |
| SM1950 | DC 10/130 | < 0.7 dB | 2000 nm |
| SM1950 | DC 25/250 | < 0.7 dB | 2000 nm |
| SM1950 | DC 25/400 | < 0.7 dB | 2000 nm |
| DC 10/130 | DC 25/250 | < 0.7 dB | 2000 nm |
| DC 10/130 | DC 25/400 | < 0.7 dB | 2000 nm |
| DC 25/250 | DC 25/400 | < 0.7 dB | 2000 nm |
Our ultra low loss Mode Field Adapters efficiently geometrically expand the mode field of a single mode optical fiber or LMA fiber to match the LP01 mode of a larger LMA fiber. Our devices are bidirectional and can be used in a reverse mode when the output end is used as an input. The performance is greatly superior to using a regular splice. Mode field adapters also generate lower losses and provide higher power transmission compared to standard splicing. In the beam delivery systems or other high-power setups, maximum signal transmission and beam quality are achieved. Mode field adapters can also be used to absorb residual pump light in the reverse direction, preventing a damage to other optical components of the fiber setup.
We can produce customized solutions to meet your requirements. For more details about the product, price or purchase options, please send us a message.
